Gemini IOS

GEMINI-IOS

Using the Input-Output System, we can meet the most diverse peripherals requirements.

  • 24 digital inputs (isolated)
  • 4 Analoge inputs (4-20mA)
  • 12 Digital outputs (isolated)
  • Fieldbus connection (e.g Profibus)
  • Voltage management (3 outputs 24V DC)

GEMINI-ASP

The Analog Signal Protection unit allows us an accurate measurement data analysis even under difficult conditions.

  • 9 analog measuring channels (isolated)
  • 1 analog input (4-20mA)
  • 1 Digital output (isolated)

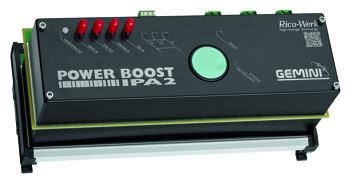

POWER-BOOST-UL

Our PowerBoost with wireless Technology ensures anytime safe operation of the high-voltage system.

  • Optical ignition pulse input
  • Innovative synchronization
  • Service operation for fault analysis
  • Wireless communication

THE GEMINI SYSTEM

Our new generation provides

  • Preemptive control algorithms in swarm intelligence architecture on Gemini-link to the constantly changing deposition conditions in the electrostatic precipitator dynamically adjust the Hochspannungsgleichstromumsetzanlage and avoid unnecessary flashovers.
  • comfortable handling due to a modern multilingual interface with a multi-touch glass surface and capacitive controls.
  • a high level of system reliability and availability (eg. Integrated Uninterrupted Power Supply)
  • a voltage regulator with a safety-related indications.
  • a secure investment for the future (e.g. innovative hardware architecture).
  • Automatic detection and individual treatment of different flashover classes.
  • Easy options to various processes by predefined sets of parameters.
  • A high level of security due to a graphical operating concept and a comprehensive rights management in the operation.
